Rolled Products
Hot-rolled seamless bushes, balls, rings and flanges in carbon steels, stainless steels, superalloys and non-ferrous alloys.
- Ø 6,000 mm
- max diameter
- 1,600 mm
- max height
- 30 t
- max weight per piece
From bushes to flanges.
Hot-rolled seamless products. Dimensions in mm: D outside diameter, d inside diameter, S thickness, H height.

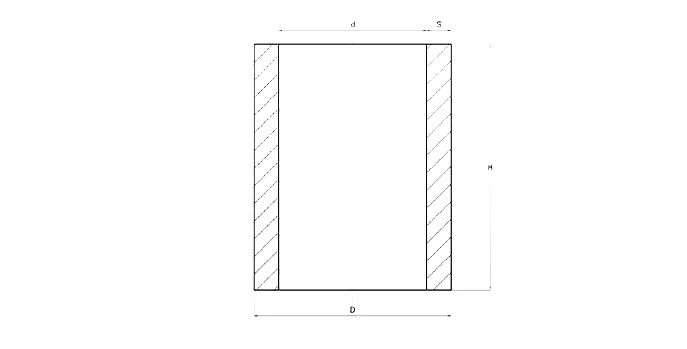

Bushes
- D 250 – 4,000 mm
- d 200 – 3,900 mm
- S from 50 mm
- H 200 – 1,600 mm
- Max rolled weight 30,000 kg

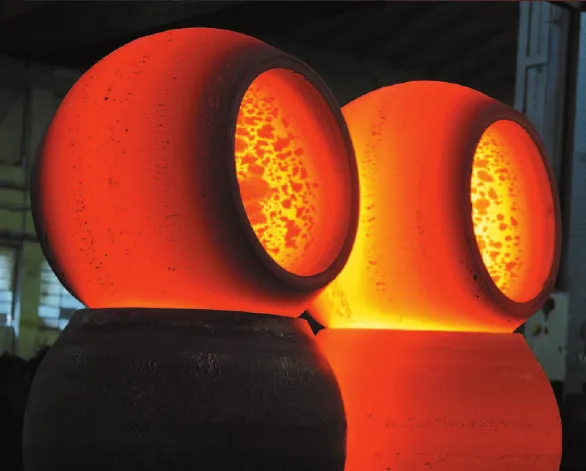

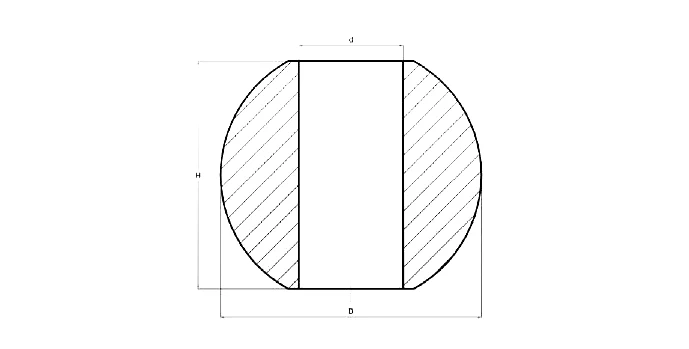

Balls
- D 16" – 56"
- d 180 – 1,300 mm
- H 300 – 1,550 mm
- Max rolled weight 30,000 kg

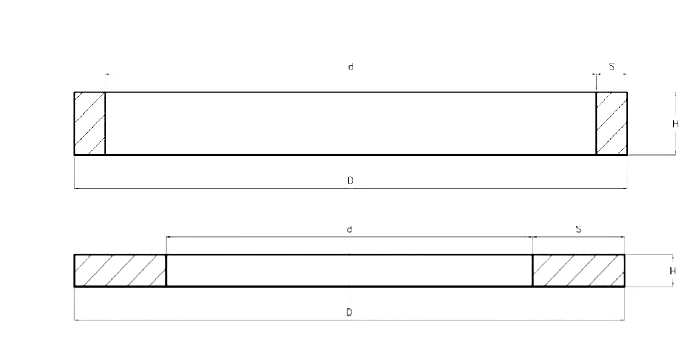

Rings
- D 300 – 6,000 mm
- d 180 – 5,300 mm
- S from 30 mm
- H 45 – 1,600 mm
- Max rolled weight 30,000 kg

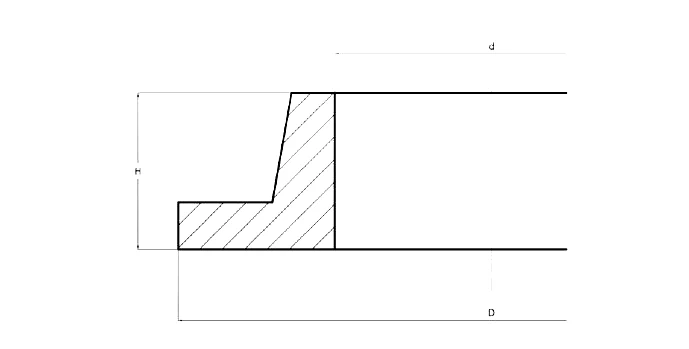

Flanges
- D 500 – 6,000 mm
- d from 180 mm
- H 100 – 1,200 mm
- Max rolled weight 20,000 kg

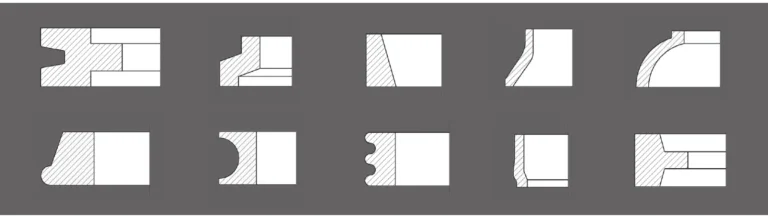

Profiled sections
Rings with profiled cross-sections, in addition to rectangular cross-sections.

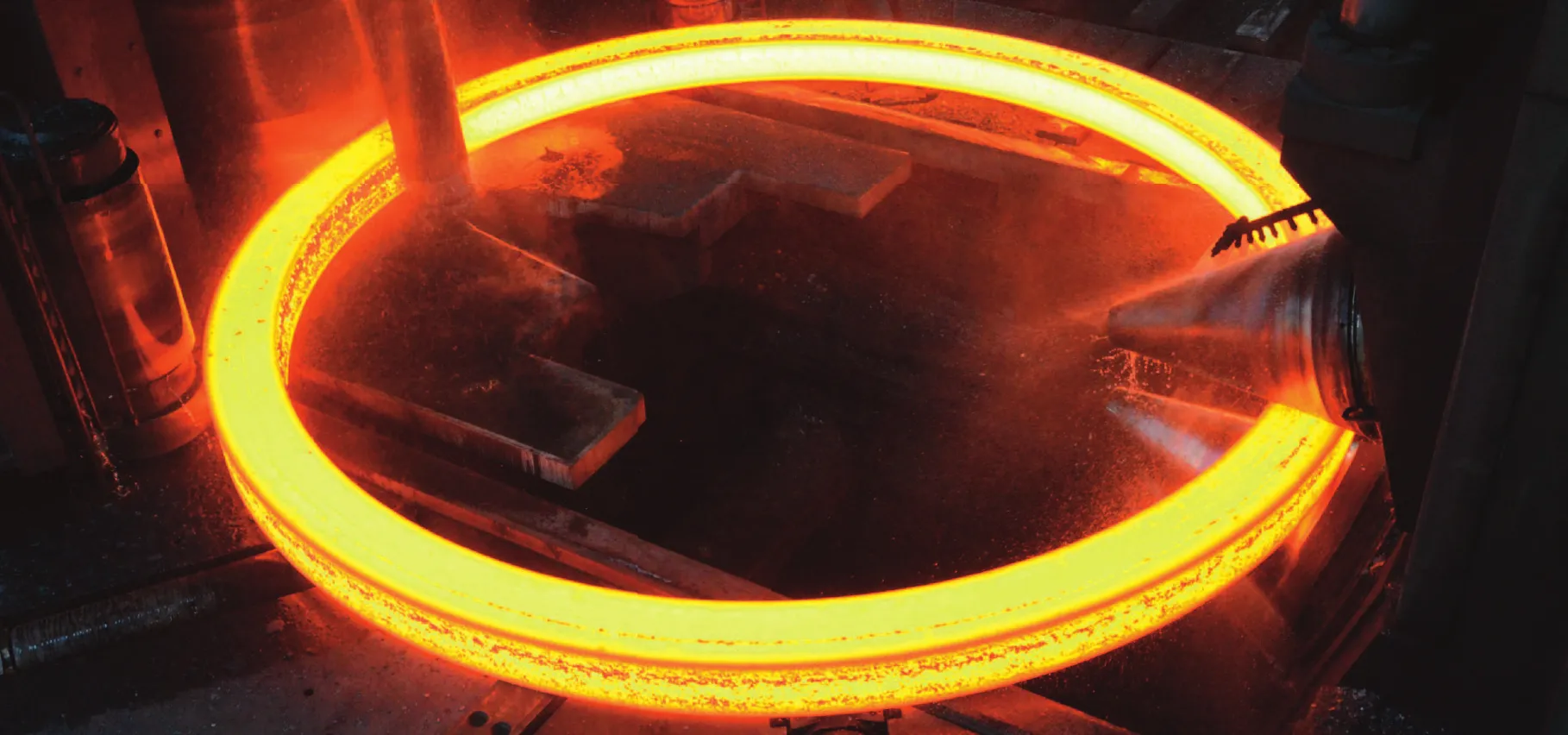

Hot-rolled rings up to 6 metres in diameter.
Siderforgerossi Group specializes in the hot rolling of seamless rings for high-performance industrial applications. Production includes rolled bushes, balls, rings and flanges, with dimensions up to 6,000 mm outside diameter, 1,600 mm height and 30,000 kg weight.
For the power generation sector, the Group manufactures profiled rings and ring segments for steam and gas turbines, nuclear power plants, hydroelectric plants and wind farms. For earthmoving, agriculture and mining, it manufactures slewing rings and rolled components for a wide range of mechanical and industrial applications.
Rings can be manufactured in carbon steels, stainless steels, superalloys and non-ferrous alloys, including profiled cross-sections designed to bring the starting profile closer to the final geometry of the component.
The production process is complemented by heat treatments carried out in Nadcap-accredited facilities and by mechanical and metallurgical testing in the in-house Forgerossi Research laboratory, accredited to ISO/IEC 17025, ensuring control and traceability throughout all key production stages.
Technical specifications
Indicative production capacity values. For each order, the technical department confirms feasibility, material and heat treatment cycle.
| Rolled products · capacity and technical data | ||
|---|---|---|
| Dimensions | Outside diameter | up to 6,000 mm |
| Height | up to 1,600 mm | |
| Weight | up to 30,000 kg per piece (flanges up to 20,000 kg) | |
| Materials | Steels | Carbon and stainless steels |
| Alloys | Superalloys and non-ferrous alloys | |
| Raw material sourcing | Continuously cast billets and ingots of various types and sizes; forged blooms for special stainless-steel applications. Chemical compositions to customer specifications. | |
| Process | Ring rolling | Hot rolled, seamless; rectangular or profiled cross-section |
| Heat treatments | Main heat treatment processes, Nadcap Heat Treating accredited | |
| Testing | Mechanical and metallurgical testing in the in-house Forgerossi Research laboratory, accredited to ISO/IEC 17025 | |
Frequently asked questions about rolled products
What rolled products do you manufacture?
Hot-rolled seamless bushes, balls, rings and flanges, also with profiled cross-sections.
What is the maximum diameter?
6,000 mm for rings and flanges, 4,000 mm for bushes. Balls range from 16" to 56" in outside diameter.
What is the maximum weight of a rolled product?
Up to 30,000 kg for bushes, balls and rings; up to 20,000 kg for flanges.
What is the maximum height?
1,600 mm for bushes and rings, 1,550 mm for balls, 1,200 mm for flanges.
What materials are available?
Carbon steels, stainless steels, superalloys and non-ferrous alloys. The Group can also supply steels with chemical compositions to customer specifications.
What information is needed for a quotation?
A component drawing with the product type, dimensions, material and quantity is sufficient for an initial technical response from our sales department.
Send us your drawing.
Product type, dimensions, material and quantity are sufficient for an initial technical response.
