Closed Die Forgings
Valve bodies, risers, bonnets, hubs, rollers, connecting rods, torque tubes and spindles closed-die forged in carbon and alloy steels, superalloys, titanium and aluminium, with product engineering and in-house die manufacturing.
- Ø 1,700 mm
- max diameter
- 3,000 mm
- max length
- 3 t
- max weight per piece
Closed-die forged components for eight industries.
From gate valve bodies for Oil & Gas to torque tubes for aerospace: some of the components we forge for each industry.

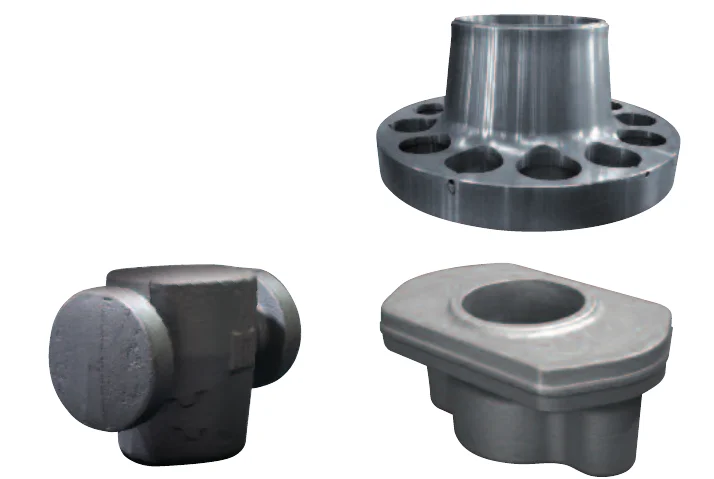

Oil & Gas
- Gate valve bodies
- Risers
- Flanges
- End caps
- Bonnets
- Balls

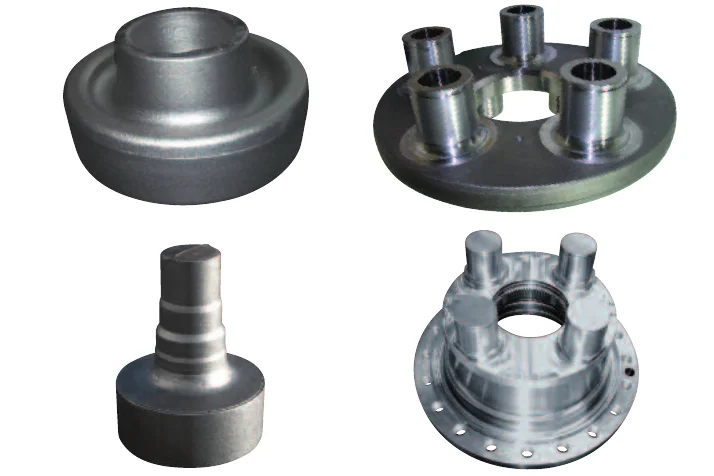

Earth Moving
- Hubs
- Planetary gearboxes
- Rollers
- Pinion shafts

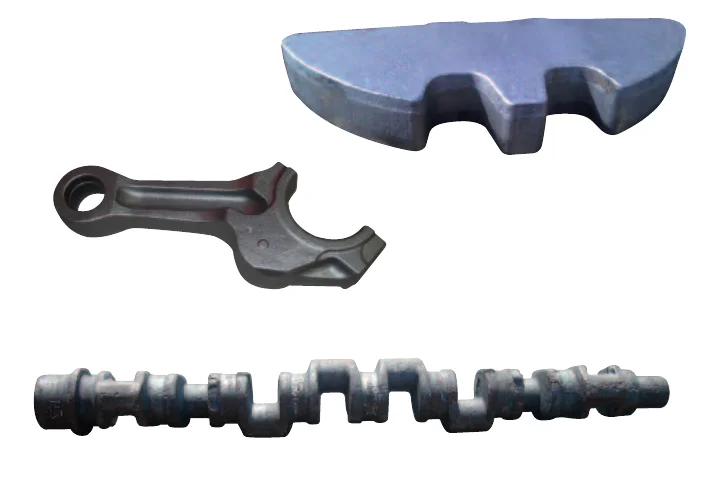

Power Generation
- Connecting rods
- Crankshafts
- Counterweights

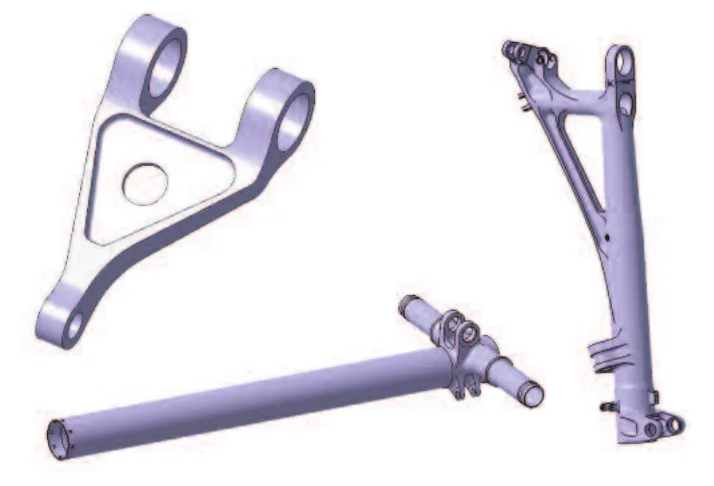

Aerospace
- Torque tube
- Main fitting
- Spindle

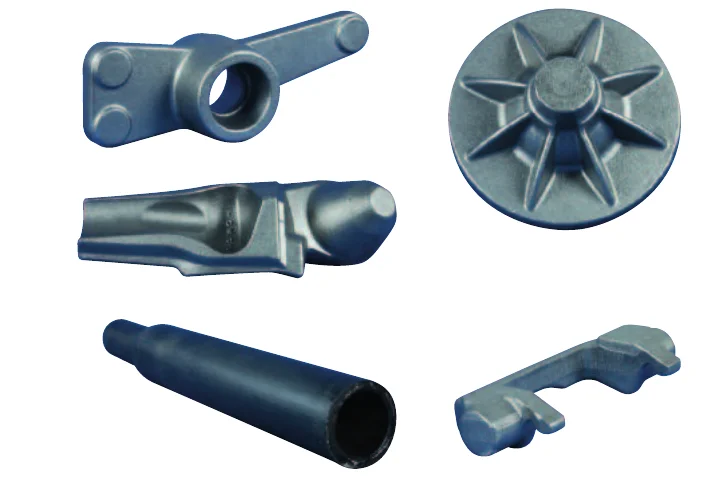

Commercial Vehicles
- Spindles
- Steering knuckles
- Snorkel

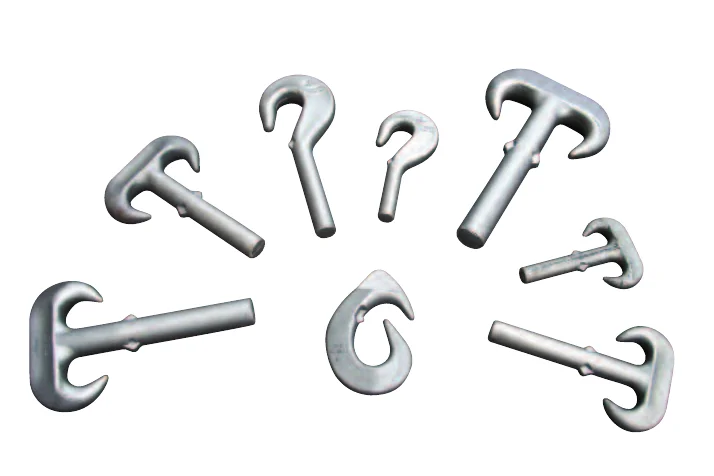

Heavy-Duty Applications
- Single hooks
- Double hooks

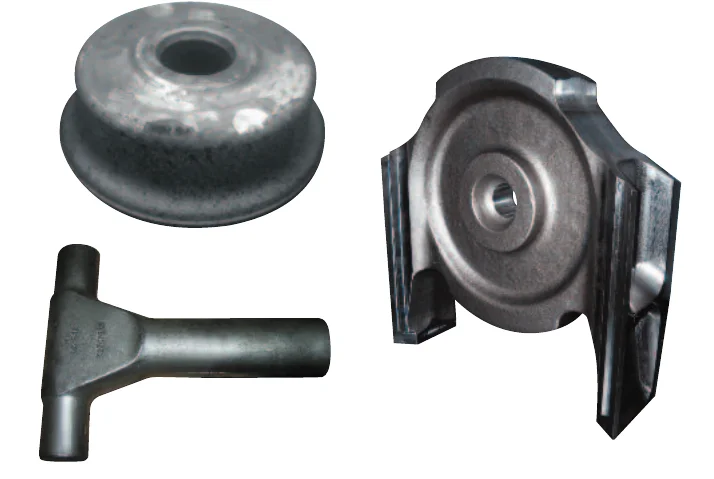

Railway
- Wheels
- Supports

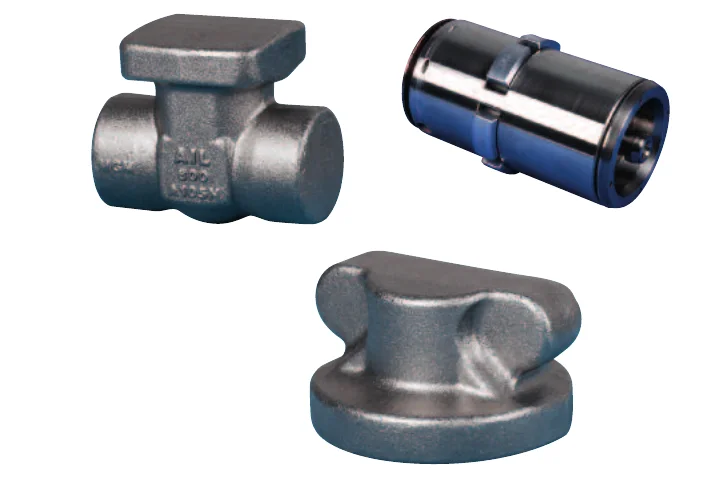

Nuclear
- Gate valve bodies
- Seal plug assemblies

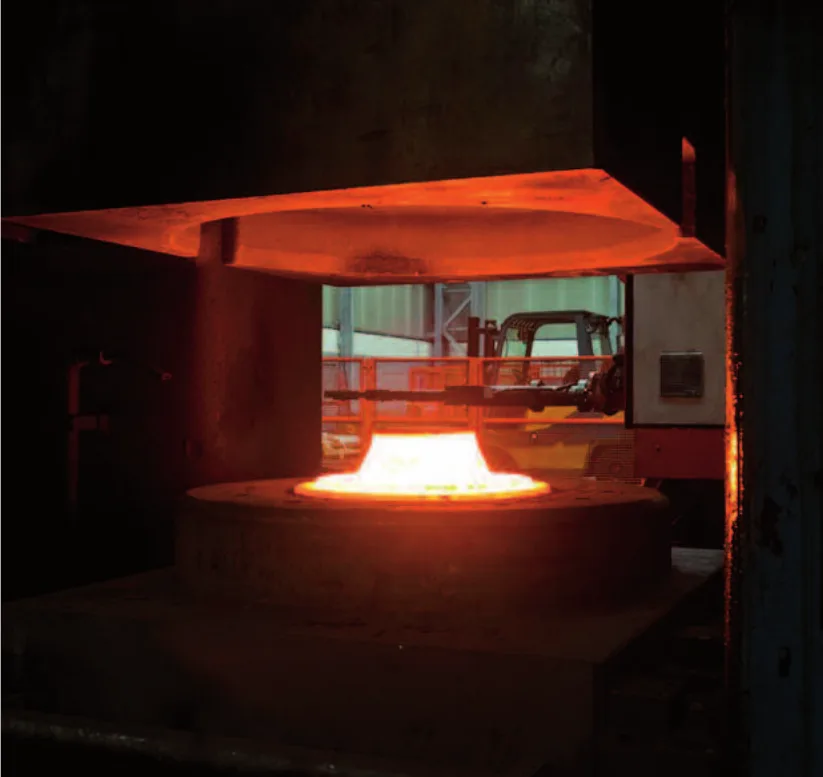

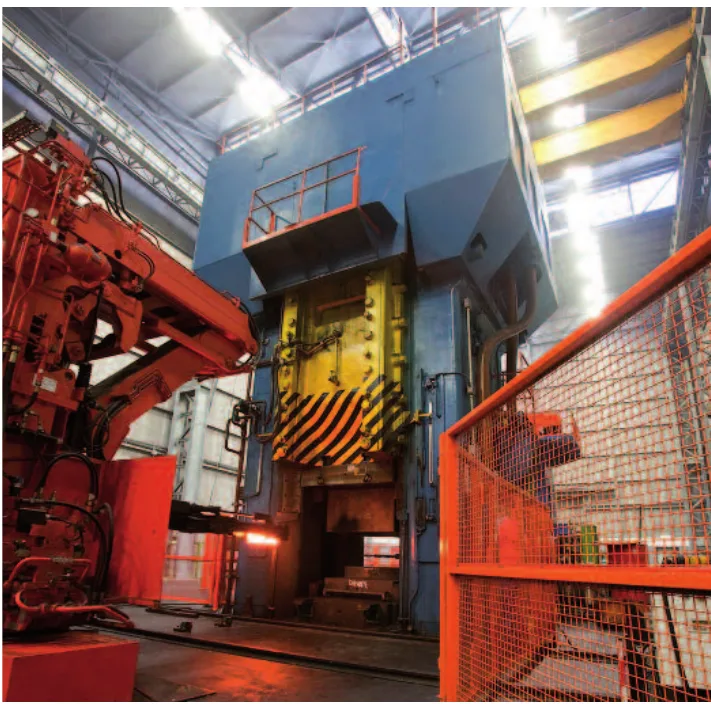

Europe's largest counterblow hammer.
At its Piedmont site, which specializes in closed-die forging, Siderforgerossi Group operates Europe’s largest counterblow hammer to produce forged components exceeding one metre in length or diameter.
Closed-die forging reduces finish machining requirements, lowering energy consumption and material waste.
In Italy, the department is equipped with three 32,000 kgm counterblow hammers, one 50,000 kgm hammer and one 63,000 kgm hammer, a 14,000 t robot-served screw press, a heat treatment department, a laboratory and a machine shop for component finishing and die manufacturing. The Group also provides product engineering.
Technical Specifications
Indicative production capacity values. For each order, our technical department confirms feasibility, material and heat treatment cycle.
| Closed Die Forgings · capacity and technical data | ||
|---|---|---|
| Dimensions | Diameter | up to 1,700 mm |
| Height | up to 700 mm | |
| Length | up to 3,000 mm | |
| Weight | up to 3,000 kg per piece | |
| Materials | Steels | Carbon and alloy steels |
| Alloys | Superalloys, titanium and aluminium | |
| Equipment in Italy | Counterblow hammers | 3 × 32,000 kgm, 1 × 50,000 kgm, 1 × 63,000 kgm |
| Screw press | 1 × 14,000 t with robotic line | |
| Process | Engineering | Product engineering and die manufacturing |
| Machining | Machine shop for component finishing and die manufacturing | |
| Heat treatments | Main heat treatment processes, Nadcap Heat Treating accredited | |
| Testing | Mechanical and metallurgical testing in the in-house Forgerossi Research laboratory, accredited to ISO/IEC 17025 | |
Frequently asked questions about closed die forgings
Which components do you forge?
Among others: gate valve bodies, risers, bonnets and balls for Oil & Gas; hubs, rollers and pinion shafts for earth moving; connecting rods, crankshafts and counterweights for power generation; torque tubes, main fittings and spindles for aerospace; wheels and supports for railway applications.
What are the maximum weight and dimensions?
Up to 3,000 kg per piece, with diameters up to 1,700 mm, heights up to 700 mm and lengths up to 3,000 mm.
What forging equipment do you use?
In Italy, we operate three 32,000 kgm counterblow hammers, one 50,000 kgm hammer and one 63,000 kgm hammer, together with a 14,000 t robot-served screw press.
Do you also design and manufacture the dies?
Yes. The Group provides product engineering and manufactures the dies in its own machine shop.
Which materials do you use?
Carbon and alloy steels, superalloys, titanium and aluminium.
What information is needed for a quotation?
A component drawing with dimensions, material and quantity is sufficient for an initial technical response from our sales department.
Send us your drawing.
Dimensions, material and quantity are sufficient for an initial technical response.
