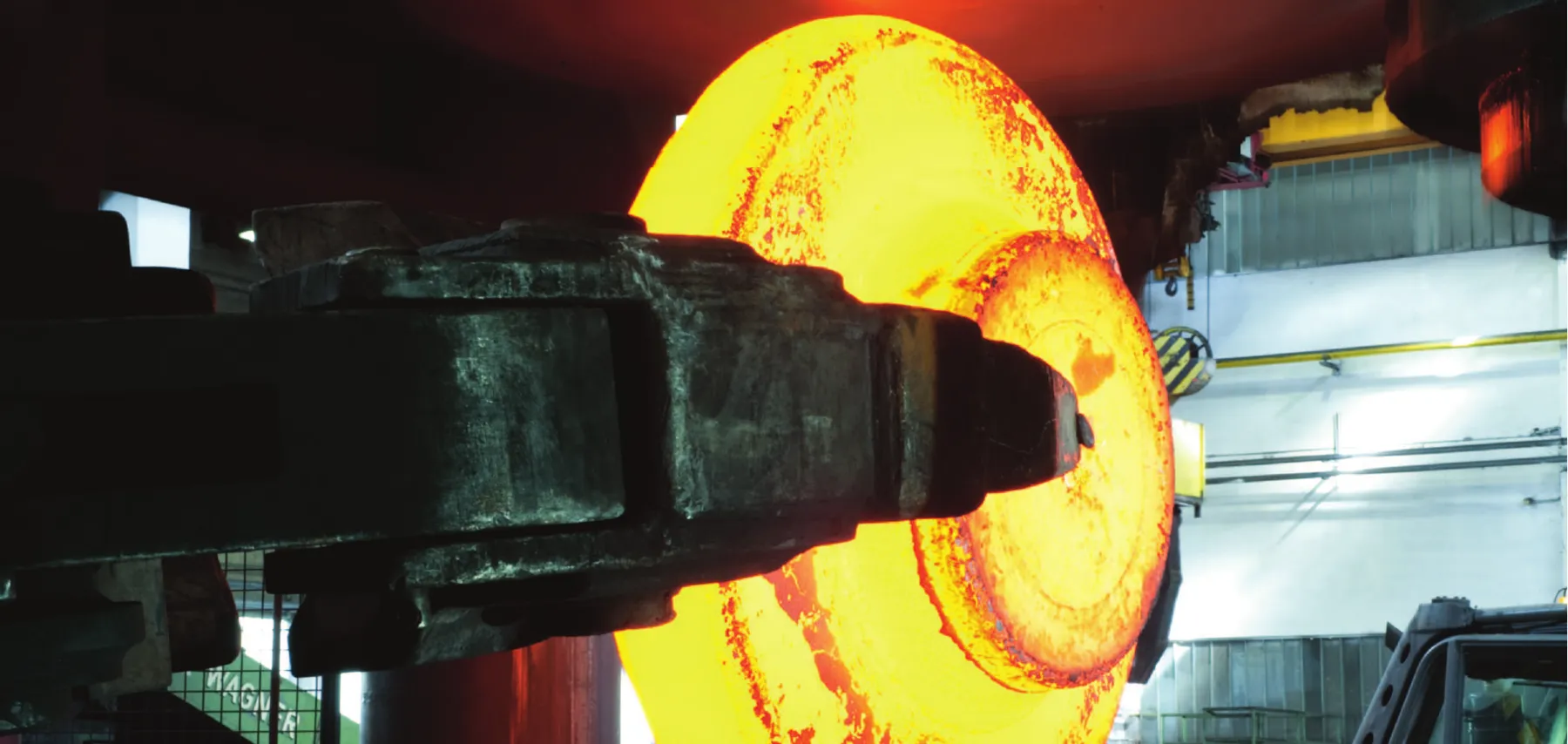

Disco forgiato incandescente movimentato dal manipolatore

Forged Products

Custom-made forged products

Bars, blocks, discs, shafts, bushes, closed hollow forgings and profiled forgings, manufactured to customer drawings in carbon, stainless and duplex steels and superalloys.

Ø 2,150 mm
max diameter
1,500 mm
max height
30 t
max weight per piece
/ Types / Forged products

Made to customer drawings.

Siderforgerossi Group specializes in manufacturing forged products to customer drawings.

D
outside diameter
d
inside diameter
L
length
A
width
H
height

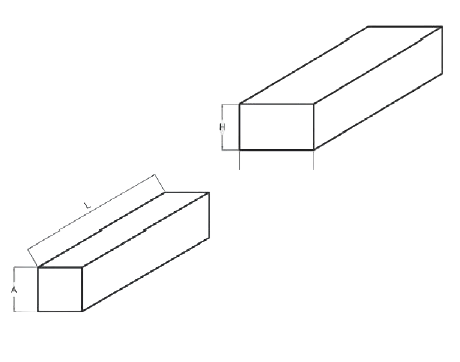

Fast Track Schema quotato barre forgiate
01 · Forged bars

Forged bars

  • D 250 – 1,100 mm
  • L up to 5,000 mm
  • A 200 – 1,300 mm
  • H 200 – 1,300 mm
  • Max forging weight 25,000 kg

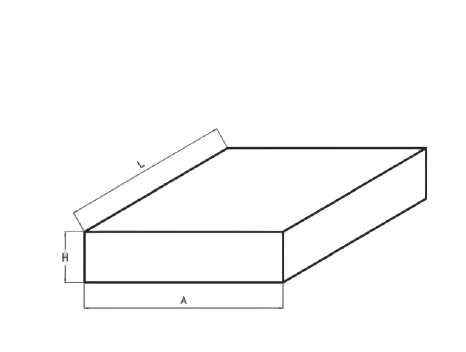

Fast Track Schema quotato blocchi forgiati
02 · Forged blocks

Forged blocks

  • L 300 – 2,000 mm
  • A 300 – 2,000 mm
  • H 50 – 800 mm
  • Max forging weight 25,000 kg

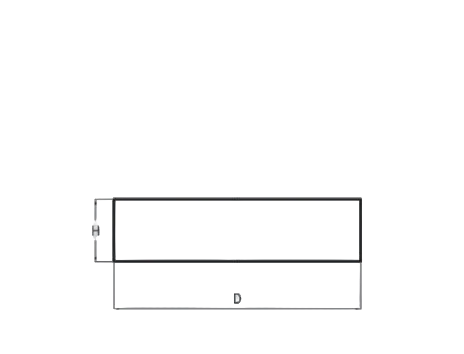

Fast Track Schema quotato dischi forgiati
03 · Discs

Discs

  • D 300 – 2,150 mm
  • H 50 – 1,000 mm
  • Max forging weight 30,000 kg

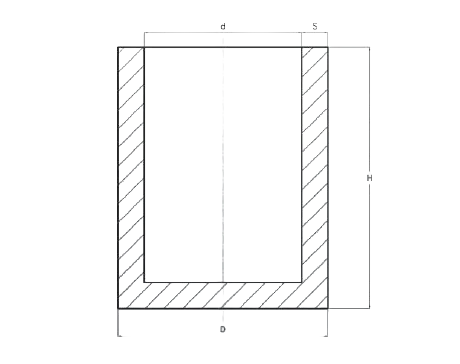

Fast Track Schema quotato bussole cieche
04 · Closed hollow forgings

Closed hollow forgings

  • D 300 – 1,700 mm
  • d 200 – 800 mm
  • H 300 – 1,500 mm
  • Max forging weight 25,000 kg

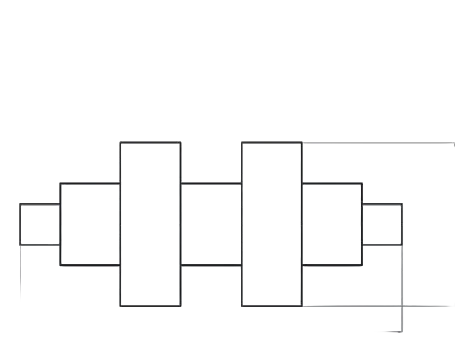

Fast Track Schema quotato alberi fucinati
05 · Forged shafts

Forged shafts

  • D 250 – 1,100 mm
  • L up to 5,000 mm
  • Max forging weight 25,000 kg

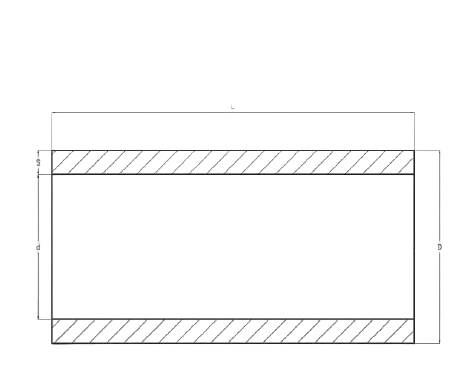

Fast Track Schema quotato bussole forgiate
06 · Forged bushes

Forged bushes

  • D 300 – 2,000 mm
  • d 200 – 1,900 mm
  • L 500 – 4,000 mm for D < 1,200
  • L 500 – 2,500 mm for D > 1,200
  • Max forging weight 20,000 kg

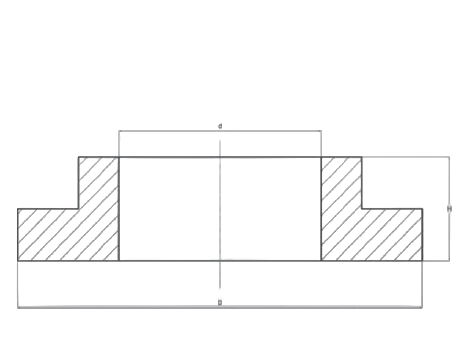

Fast Track Schema quotato forgiati profilati
07 · Profiled forgings

Profiled forgings

  • D 300 – 2,150 mm
  • d 150 – 800 mm
  • H 150 – 1,500 mm
  • Max forging weight 20,000 kg
Fast Track Schema quotato alberi stampati
08 · Shafts, spindles etc.

Closed-die forged shafts

  • D 250 – 1,600 mm
  • L 500 – 1,800 mm
  • Max forging weight 15,000 kg
Fast Track Service

Forged discs, shafts, bushes and blocks on a priority production lane:

up to 70% shorter lead times than standard. For Flender GmbH, a Ø 665 mm bored disc delivered in 4 weeks instead of 8.

Discover Fast Track
/ Forging / Forged steel

From raw materials to inspection, within an integrated Group.

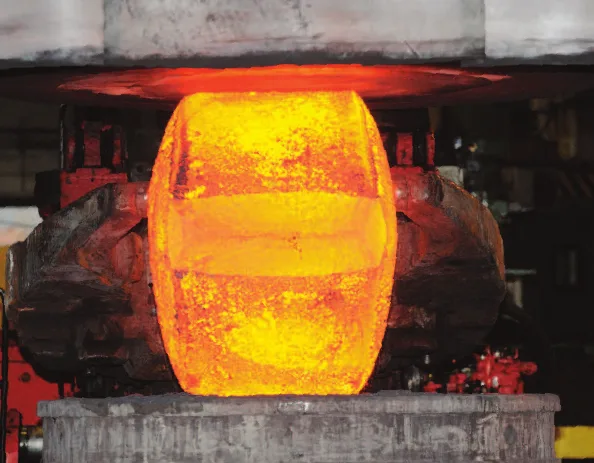

Forgiato incandescente sotto la pressa

Siderforgerossi Group manufactures custom steel forgings to customer drawings for industrial applications requiring high mechanical properties, traceability and reliability. The product range includes bars, blocks, discs, shafts, bushes, closed hollow forgings and profiled forgings, with dimensions up to 2,150 mm in diameter and 1,500 mm in height.

Production starts with continuously cast billets and ingots of various types and sizes, sourced from qualified Italian and European producers. Forged blooms can also be used for special stainless steel applications. Access to multiple supply sources also enables the Group to provide steels with chemical compositions tailored to customer specifications, while maintaining a high degree of flexibility in raw material procurement.

From steel selection and forging to heat treatment and final inspections, the main production stages are managed within the Group. Heat treatments are performed at Nadcap-accredited facilities, ensuring continuity and process control throughout the production cycle.

The in-house Forgerossi Research laboratory, accredited to ISO/IEC 17025, performs mechanical and metallurgical testing in support of production, ensuring full traceability of materials and inspections from the initial melt to delivery.

/ Specifications / Materials and processes

Technical specifications

Indicative production capacity figures. For each order, our technical department confirms feasibility, material selection and the heat treatment cycle.

Forged products · capacities and technical data
Dimensions Outside diameter up to 2,150 mm
Height up to 1,500 mm
Weight up to 30,000 kg per piece (discs)
Materials Steels Carbon, stainless and duplex steels
Superalloys Nickel-based alloys
Raw material sourcing Continuously cast billets and ingots of various types and sizes; forged blooms for special stainless steel applications. Chemical compositions to customer specifications.
Process Engineering To customer drawings
Heat treatment Main heat treatment processes, Nadcap Heat Treating accredited
Inspections Mechanical and metallurgical testing at the in-house Forgerossi Research laboratory, accredited to ISO/IEC 17025
Industries using our forged products
/ FAQ / Forged Products

Frequently asked questions about forged products

What types of forged products do you manufacture?

Forged bars, forged blocks, discs, closed hollow forgings, forged shafts, forged bushes, profiled forgings and closed-die forged shafts, all manufactured to customer drawings.

What is the maximum weight of a forging?

Up to 30,000 kg for discs; 25,000 kg for bars, blocks, closed hollow forgings and forged shafts; 20,000 kg for bushes and profiled forgings; and 15,000 kg for closed-die forged shafts.

What are the maximum dimensions?

Outside diameters up to 2,150 mm for discs and profiled forgings, and heights up to 1,500 mm. Bars and forged shafts can reach lengths of 5,000 mm, while bushes can reach 4,000 mm in length with an outside diameter below 1,200 mm.

Which materials are used for your forged products?

Carbon, stainless and duplex steels, as well as superalloys. The Group can also supply steels with chemical compositions tailored to customer specifications.

How are forged products inspected?

Mechanical and metallurgical testing is carried out at the in-house Forgerossi Research laboratory, accredited to ISO/IEC 17025, with traceability for every order from the initial melt to delivery.

What information is required for a quotation?

A component drawing showing its type, dimensions, material and quantity is sufficient for an initial technical response from our sales department.

/ Quotation / Forged Products

Send us your drawing.

Component type, dimensions, material and quantity are sufficient for an initial technical response.

PDF Forged Products · Forged ProductsTechnical data by product type · 2 pages
